SimLab Composer

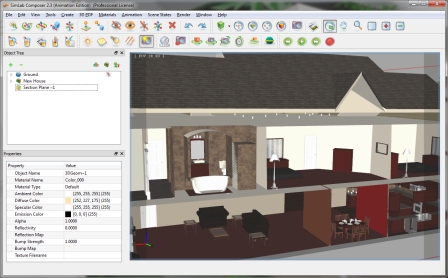

Scene Building

In addition to the draggers found in modern 3D applications to place models in the scene , SimLab Composer offers unique tools like snap to object and snap to ground, makeing building 3D scenes intuitive and fast.

SimLab Composer maintains the assembly structure of imported 3D models. This enables users to select the level to work on (face, body, part, subassembly or assembly). For models with no texture coordinates, SimLab Composer gives its users the needed tools to generate texture coordinates.

SimLab composer supports importing 3D models from a wide range of 3D formats

3D Sharing

Scenes created inside SimLab Composer can be shared in different ways;

3D PDF: 3D PDF is a quick and safe way to share 3D models. A 3D PDF file is a PDF file that can be opened using a free version of Acrobat reader, which includes 3D Data. The recipient of the file will be able to view, rotate, and interact with the 3D scene. 3D PDF was designed to be very easy to use for none technical users.

3D HTML (WebGL):SimLab Composer supports sharing 3D scenes as HTML files that can be opened using any of the leading web browsers including Google Chrome, Fire Fox, Internet explorer and Safari by utilizing the web browser's native WebGL capabilties

Exporting to Android/iPad: 3D scenes created in SimLab Composer, can be exported to Android/iPad as SimLab archive files (*.zim). SimLab Archive files can be opened using SimLab CAD Viewer on iPad, and Android.

Rendering

SimLab Composer Rendering edition includes SimLab RT Renderer, a high quality real time renderer. SimLab RT has full integration with SimLab Composer, and is suitable for interior and exterior rendering.

Assigning materials can be done by dragging materials from the material library in SimLab Composer and dropping them on the 3D objects.

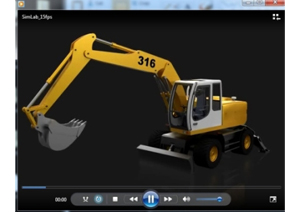

Animation

SimLab Composer animation edition allows users to easily create animations showing the motion of a designed machine, or a walkthrough of a house.

Animations created in SimLab Composer Animation Edition can be rendered and used to create movies that can be posted on the web and shared with others. They can also be used to create animated 3D PDF, and HTML / Web GL files which include the motion of objects and cameras.
