Plugin Description

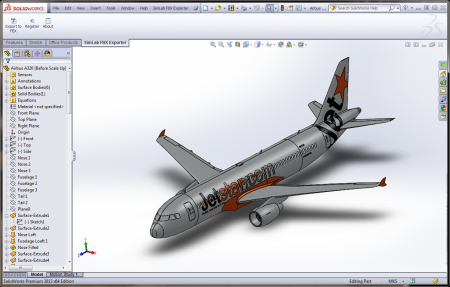

SimLab FBX exporter for SolidWorks plugin enables SolidWorks users to export their 3D models in *.fbx file format.

Supported versions

The plugin is supported on SolidWorks 2013, and 2014; 32, and 64bit.

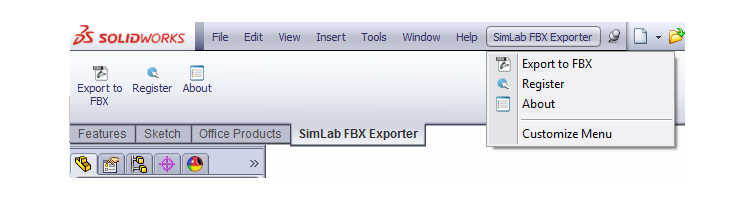

After installing the plugin, and to access its functionalities a user needs to go Tools -> Add-Ins. In the Add-Ins dialog check SimLabSolidworksFBXExportercheckbox, and a new SimLab FBX Exporter tab and menu will be added to SolidWorks.

To enable the plugin's functionalities each time SolidWroks starts the Start Up checkbox should be checked as well.

For the first time a user will need to register the plugin's license, Trial or Professional. This can be done by clicking the Export to FBX or Register options in the plugin's tab or menu. For step by step instructions on how to register a license, pleaseclick here.

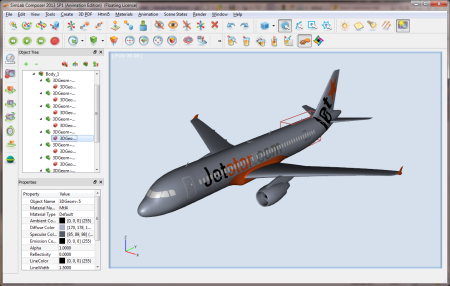

Click Export to FBX option and start exporting your SolidWorks Parts/Assemblies into FBX.
